LBC Oven Not Holding Temperature: Door Lock and Power Relay Repair
On this job, an LBC Bakery Equipment LMO-G oven (90,000 BTU) in a restaurant kept switching on and off and would not hold temperature. The cause was a failed door lock and a failed power relay. Replacing both parts restored normal operation, and the oven now heats and holds temperature correctly.

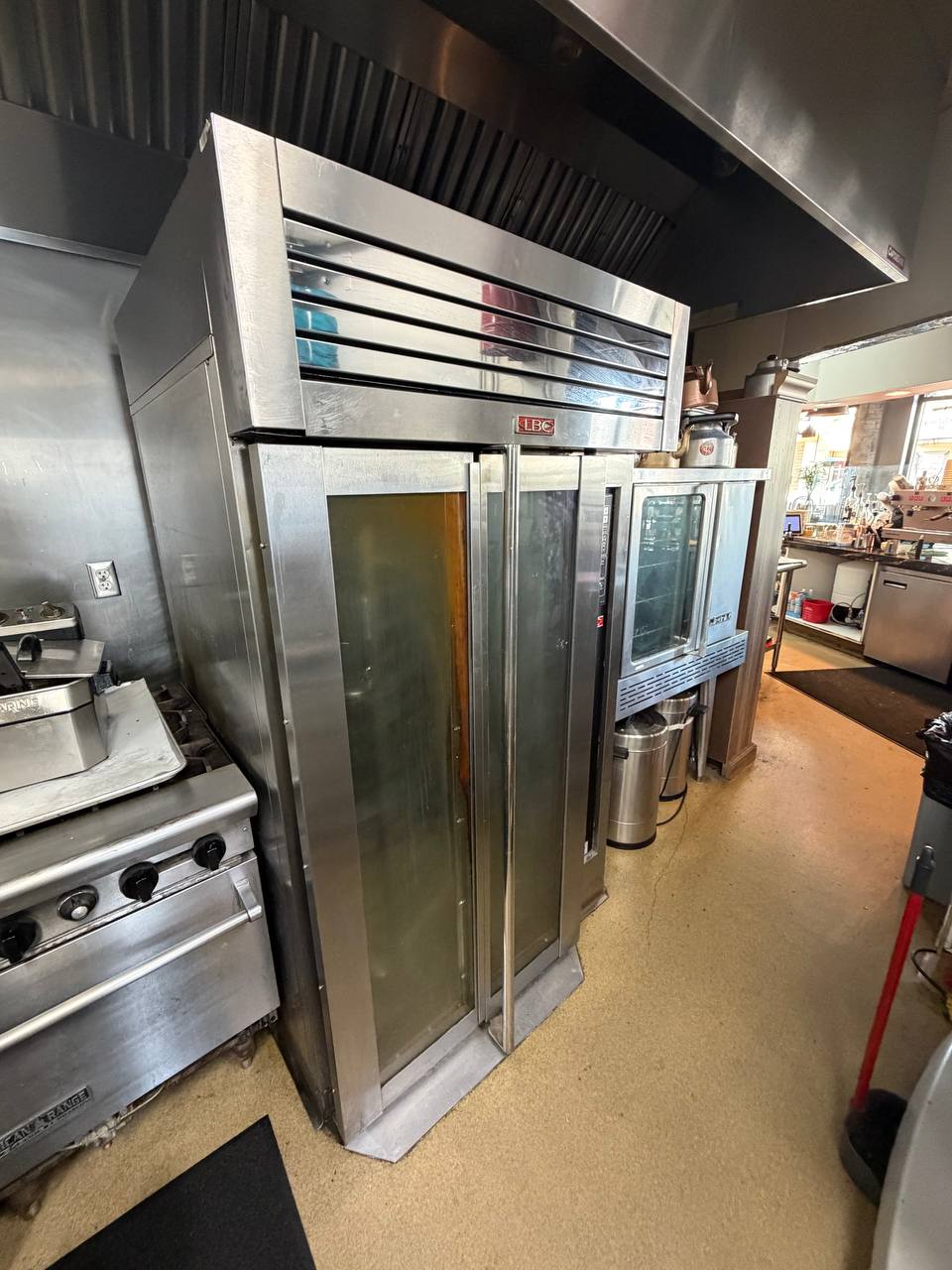

I got a call from a restaurant about their walk-in oven, an LBC Bakery Equipment LMO-G rated at 90,000 BTU. The complaint was that the oven would turn on sometimes and not other times, and because of that it could not hold its set temperature. An LBC oven not holding temperature is a problem a kitchen cannot work around for long, so I went out to diagnose it.
Why Was the Oven Turning On and Off?
Two components had failed: the door lock and the power relay that switches the oven on and off.
The door lock matters because a commercial oven’s controls need to confirm the door is properly secured before allowing operation. When the lock fails, that confirmation becomes unreliable, and the oven can drop out of operation unpredictably.
The power relay is the switch that actually delivers power to the oven when the controller calls for it. When a relay starts failing, it makes contact intermittently. The result is exactly what this kitchen saw: the oven would fire sometimes, refuse other times, and any temperature it reached would drift away when the relay dropped out mid-cycle.
How I Fixed It
I replaced the door lock and the power relay. With both new parts installed, I ran the oven and confirmed it powered on consistently and held its set temperature. The customer was satisfied, and the oven is back in service.
What Can You Safely Check Yourself?
Before calling for service, you can check two things: whether the door closes and latches fully, and whether the problem is consistent or intermittent. If the oven works when you hold pressure on the door but drops out when you let go, that points toward the lock or door switch. If it cuts out at random regardless of the door, an electrical component like the relay is more likely.
That is where the self-diagnosis should stop. This is a gas oven running on line voltage, and both the gas system and the relay circuit need to be handled by a qualified technician. If your commercial oven is cycling on and off or losing temperature, call a professional.
FAQ
Why does my commercial oven keep shutting off by itself?
Intermittent shutoffs usually come from a component in the power or safety chain making unreliable contact, most often a worn relay, a failing door lock or switch, or a loose electrical connection. Because several parts can produce the same symptom, the reliable way to pin it down is testing each component in the circuit rather than replacing parts on a guess. A technician can isolate the failed part in a single visit.
Is it worth repairing a commercial oven or should I replace it?
If the failure is limited to switching components like a relay or a door lock, repair is almost always the sensible route, since those parts cost a fraction of a new commercial oven. Replacement makes more sense when the burner assembly, chamber, or insulation is deteriorating across the board. A unit that heats properly once power delivery is restored, like this one did, has plenty of service life left.
How urgent is a failing door lock on a commercial oven?
It should be handled promptly. Beyond the operational problem of the oven cutting out, the door lock is part of the safety system, and running a gas oven with an unreliable lock means the appliance cannot verify the door is secured during operation. It also tends to get worse, going from occasional dropouts to a complete no-start, usually at the worst possible time for a working kitchen.
