A two-year-old Samsung washer, model WF45B6300AP, had a torn door boot. The rubber diaphragm was damaged mechanically, the kind of tear something hard makes when it gets caught between the drum and the seal, not age-related rot. I installed a new Samsung door diaphragm, part number DC64-03788C, and the machine runs normally again.
What I found at the machine

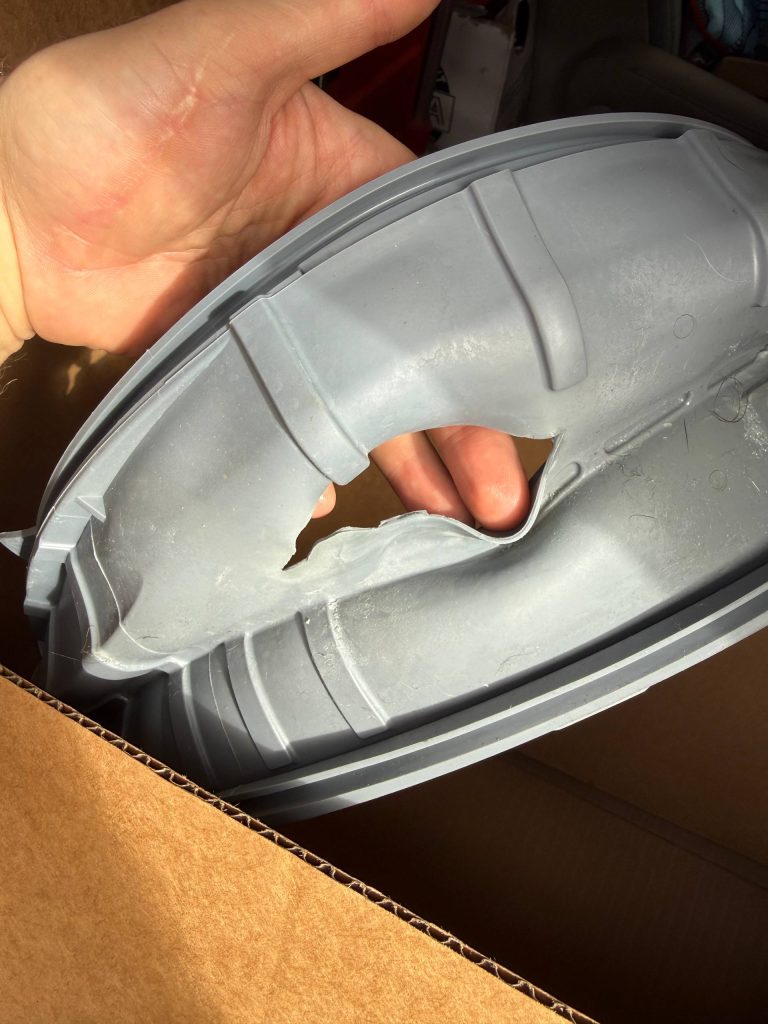

The tear was in the rubber boot itself, the flexible gasket that bridges the opening in the front panel and the mouth of the wash drum. At two years old this washer had no business having a worn seal, and the rubber everywhere else was still soft and intact, so I treated it as damage rather than wear. Something rigid went into the boot fold with a load of laundry and cut it.
The boot is held by two clamps: a spring clamp on the outer lip that grips the front panel, and a second clamp inside holding the boot to the tub. I released the outer clamp, worked the boot off the panel, freed the inner clamp, and fitted the replacement Samsung diaphragm (DC64-03788C), seating the alignment mark at the top before resetting both clamps. The customer in Irvine ran a load before I left and the seal held dry.
Why does a front load washer door boot tear?
Most torn boots I see come from something hard riding in the fold at the bottom of the seal. Coins, bra underwires, keys, nails and screws left in pockets, zipper pulls on heavy jeans. The drum spins past the stationary boot at high speed during the spin cycle, and a small metal object trapped between the two acts like a blade.
The second cause is chemical. Running hot cycles with heavy bleach, or leaving bleach pooled in the fold after a wash, breaks the rubber down until it cracks on its own. That kind of failure looks different, with brittle crazing over a wide area instead of a single slit.
Age is third, and on a machine under five years old it is rarely the answer. The rubber compound outlasts most of the other wearing parts in the cabinet.
What can you check yourself?
Pull the boot open and look all the way around the inside fold with a flashlight. Rotate the drum slowly by hand while you do it, because a tear low on the boot hides under the lip when the machine is sitting still. Anything you find in the fold, coins, buttons, hairpins, should come out before you run another load.
A damp towel wiped around the inside of the seal after the last wash of the day keeps grit out of the fold, and it is the single thing that extends the life of the gasket most. If you find water on the floor and the boot looks intact, stop looking at the door and check the drain filter at the lower front of the cabinet, which is a different repair with a similar puddle, like this cracked drain filter on a Samsung washer.
FAQ
How long should a Samsung washer door boot last?
Ten years or more is normal if nothing physically damages it. The rubber is designed to flex through the full life of the machine, so a boot that fails early almost always failed for a reason: something sharp in the fold, heavy bleach exposure, or overloading that forces laundry to pinch between the drum and the seal on every spin. Replacing it early does not mean the machine is poorly built.
Can a torn washer door seal be patched instead of replaced?
No. Adhesives and rubber patches do not survive the combination of constant flexing, hot water, and detergent. A patch might hold for a few cycles, then the tear reopens and usually runs longer than before. The boot is also a safety part: it keeps water inside the cabinet and away from the door lock and the wiring behind the front panel. It gets replaced as a unit.
My front load washer door seal is leaking but I see no tear. What else could it be?
Check whether the leak is actually coming from the boot. Water running down the inside of the door glass and onto the floor often means the boot lip is dirty, so a film of detergent scum is breaking the seal against the glass. Clean the sealing face and run a cycle. Standing water in the bottom of the boot after every wash can also point to a clogged drain system rather than a damaged gasket.
