Electrolux Range Burner Not Heating: One Repair in Orange, CA
An Electrolux range burner not heating is most often a failed surface element or the switch that feeds it. On this FFEF3016TSC in Orange, CA, the left front element was dead. I replaced the element and also replaced the switch assembly that controls those burners, and the cooktop worked again.
The call was an Electrolux range, model FFEF3016TSC, in Orange, CA. The complaint was simple: the left front burner would not heat. Everything else about the range looked normal from the front.
Why was this Electrolux range burner not heating?
The left front surface element itself had failed. A surface element is a resistance heater, and it either passes current along its full length or it does not. When the internal element coil opens up, that burner goes completely cold while the rest of the cooktop behaves as if nothing has changed.
Behind the element there is a switch that regulates it. That switch cycles power to the burner on and off to hold whatever setting you dial in, which is why a burner on medium clicks and glows in a rhythm instead of running flat out. On this range, the switch block that controls those burners was also replaced as part of the repair, so the new element would be driven by a known-good control.
How I fixed the Electrolux range burner not heating

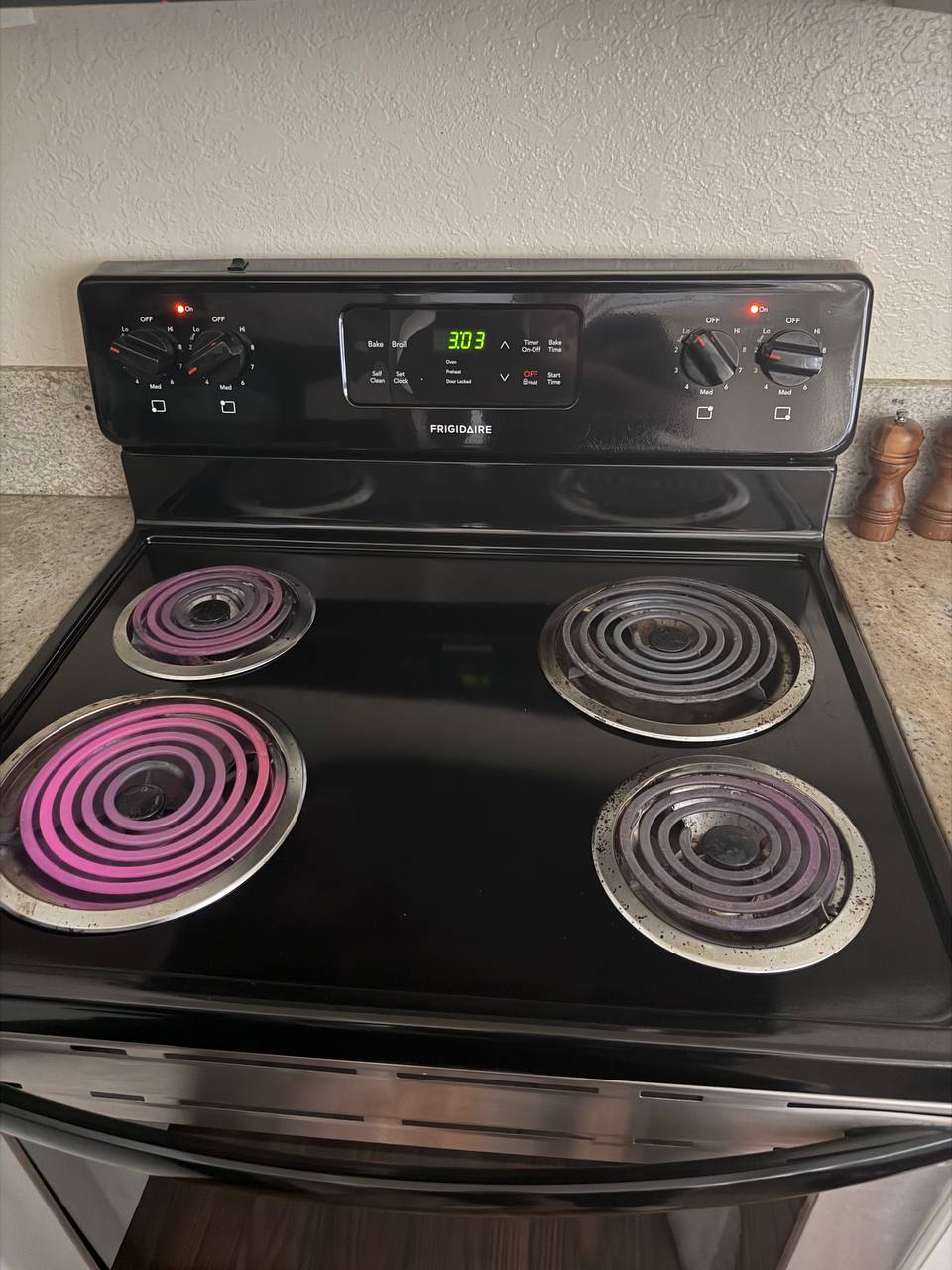

I replaced the left front heating element. With the new element in, that burner came back up. I also replaced the switch that operates those burners, then confirmed the cooktop was working before I packed up.
Both parts are serviceable items on this range. The element is a consumable in the sense that every one of them eventually opens up after enough heat cycles, and the switch carries the full load of the burner every time it closes, so contacts inside it wear.
Can you check anything yourself?
You can check the obvious things without opening anything up. Look at whether the element is sitting fully seated in its receptacle, and watch whether the burner glows at all on a high setting. If one burner is cold and the others are not, the problem is confined to that burner’s element, its receptacle, or its switch.
Anything past that means working with line voltage inside the range, and that is work for a professional.
FAQ
Why is only one burner on my electric range not working?
A single dead burner means the fault sits in that burner’s own circuit rather than the range’s main power feed. That circuit is short: the element, the receptacle the element plugs into, the wiring to it, and the switch on the control panel. If every burner is dead at once and the oven and clock still work, the problem moves upstream to one leg of the 240 volt supply instead.
Will a new surface element fix a burner that won’t heat?
Sometimes, but not always, because the element is only one of the parts in that circuit. If the switch feeding the burner has burned contacts, a brand new element will sit there just as cold as the old one. That is why the switch gets checked alongside the element rather than after it, and on this Electrolux FFEF3016TSC both parts were replaced.
Is a burner repair worth it on an Electrolux range?
Usually yes, because this kind of failure is limited to replaceable parts on the cooktop and does not touch the oven cavity, the door, or the main wiring harness. The range is otherwise unaffected by a dead element. Get a quote on the specific parts for your model before deciding, since element and switch pricing varies between a plug-in coil range and a radiant glass top.
Need a burner looked at?
If you have a burner that stays cold on an Electrolux or any other electric range in Orange, CA, get in touch and we will diagnose it and quote the parts before any work starts.
