A gas valve on this KitchenAid cooktop failed and let gas escape, which led to a small gas explosion at the unit. The valve itself was discontinued by the manufacturer, so the fix was replacing the entire manifold assembly. After the manifold swap, the cooktop worked normally with no leaks.

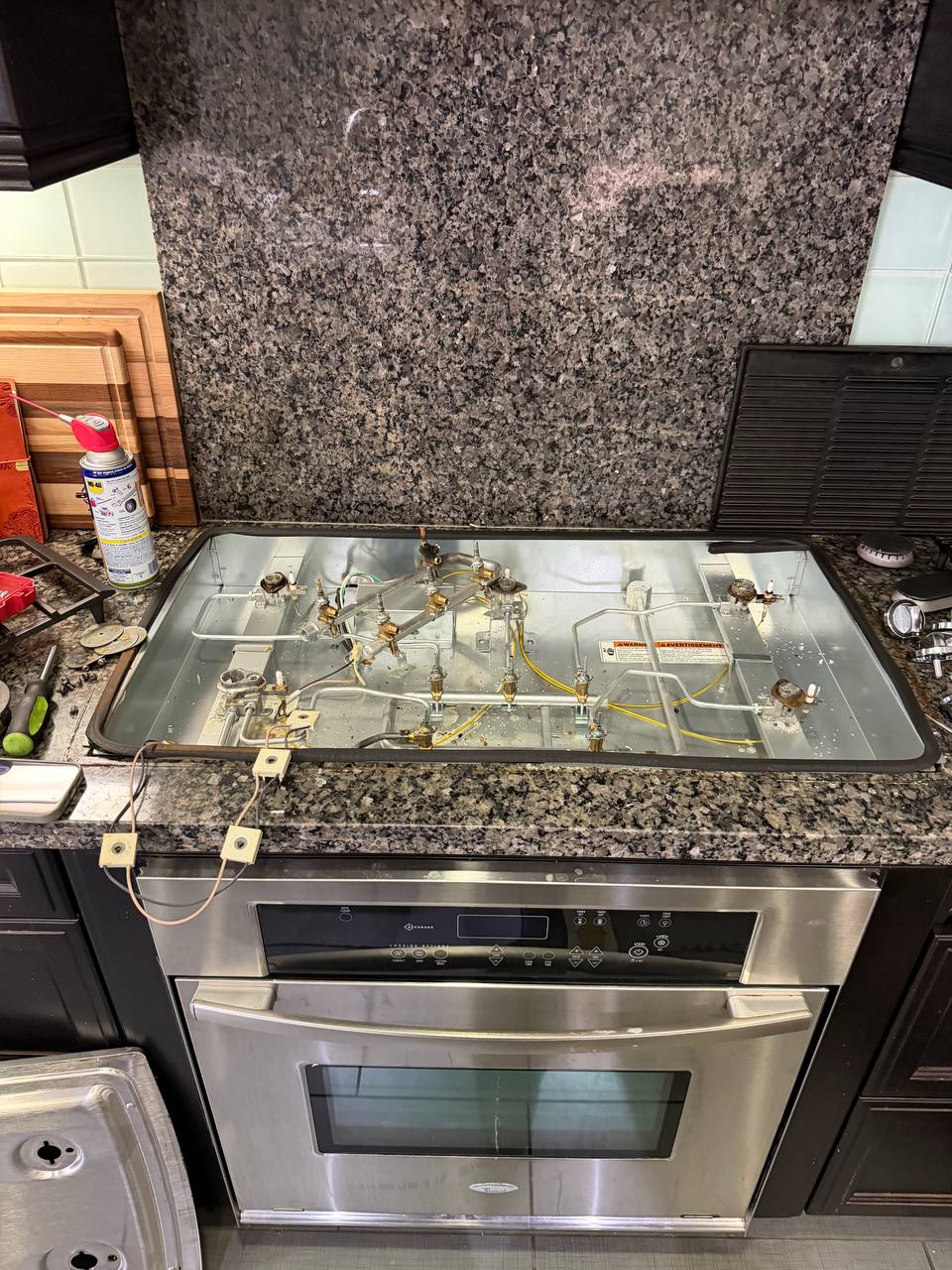

I got called out to a KitchenAid gas cooktop leak in Villa Park. Before I arrived, a valve had already failed, gas had escaped, and there had been a small gas explosion at the cooktop. The unit needed to be made safe and repaired.
What caused the leak?
A failed gas valve. The valve is what opens and closes the gas path to a burner when you turn the knob. When one fails, it can stop sealing properly, and gas can escape even when the burner is off. On this unit, that leak found an ignition source, which is what produced the small explosion.
How was it fixed?

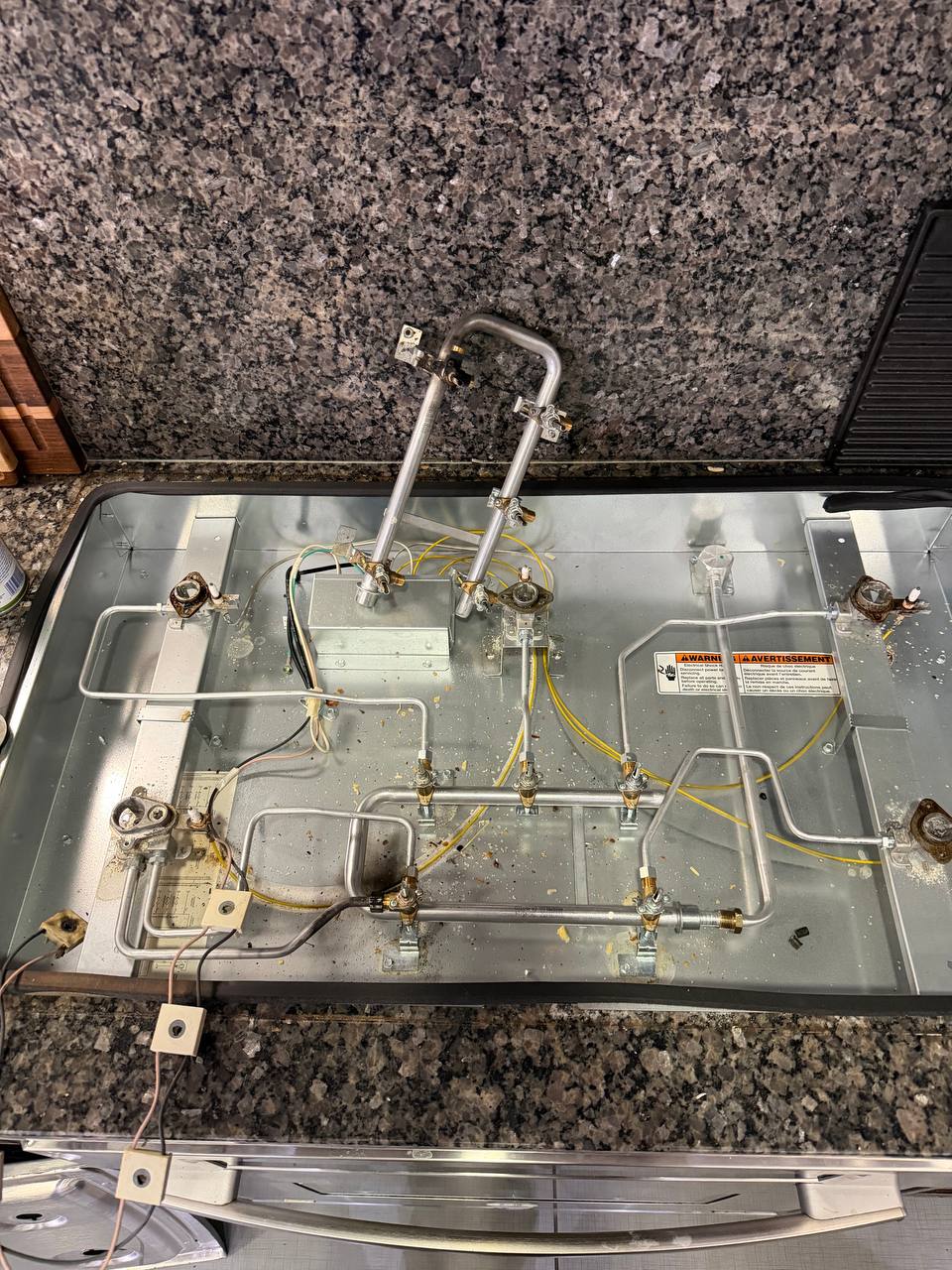

The original valve turned out to be discontinued, with no replacement available on its own. The only option was to replace the whole manifold assembly, which is the gas distribution rail the valves mount to. That is a common situation with older cooktops: once individual valves go out of production, the manifold becomes the serviceable part. I installed the new manifold, and the cooktop now runs the way it should.
If you ever smell gas from your cooktop, do not keep using it and do not try to repair a gas valve yourself. Shut off the gas supply if you can do so safely and call a professional.
FAQ
Why does my gas cooktop smell like gas when the burners are off?
The most common reason is a valve that no longer seals fully, letting a small amount of gas past even in the off position. Connections and fittings can also loosen over time. Any persistent gas smell is a reason to stop using the appliance and have it inspected, because even a slow leak can accumulate and ignite.
Can you replace just one gas valve on a cooktop?
Sometimes, but it depends on parts availability. Many manufacturers stop producing individual valves for older models, and in that case the manifold assembly (which includes the valves) is the only replacement path. It costs more than a single valve, but it also means every valve on the unit is new rather than the same age as the one that failed.
Is a gas cooktop safe to use after a small gas explosion?
Only after a technician has inspected it and replaced the failed components. A flare-up means gas was escaping and found ignition, and the underlying leak does not fix itself. On this Villa Park job the unit was fully safe to use once the new manifold was installed and tested, and that inspection step is what makes the difference.
Need a gas cooktop repaired?
If your KitchenAid or other gas cooktop is leaking, hissing, or smells like gas, call us. We handle gas valve and manifold replacements, including on older models with discontinued parts.
