LG Washer Not Completing Cycle? Check the Dampers

An LG washer that finishes small loads but stops partway through larger ones usually has worn suspension. On a WM4000HWA in Newport Beach, the friction dampers were no longer controlling drum movement, so the washer could not balance heavy loads. Replacing the friction damper assembly, part ACV72909503, returned it to normal cycles.

The customer described it as a machine that sometimes finished and sometimes did not. Light loads were fine. Heavier ones were a coin flip. That pattern is the useful part of the complaint, because an LG washer not completing cycle in a way that tracks with load size is pointing at mechanical support, not at the control board or the drain.

Why would a washer finish small loads but quit on big ones?

Because weight changes how far the drum swings. A few shirts stay close to centered no matter how the machine spins them. A full load of towels soaks up water, settles to one side, and the drum starts moving through a much wider arc as speed climbs. The washer monitors that movement. When it reads motion outside of what it can safely spin at, it slows down, redistributes, tries again, and if it still cannot settle the load, the cycle stalls or ends early.

So the machine was doing exactly what it was designed to do. The reason it had to do it was underneath the tub.

What do friction dampers actually do on an LG washer?

They absorb the energy of the tub moving, the same way a shock absorber on a car controls the spring. Four of them sit between the tub and the base of the cabinet. Inside each one is a piston running against a friction lining. As the tub rocks, that lining drags against the piston and converts the motion into heat instead of letting the tub keep swinging freely.

That lining wears down. It is a consumable surface, and once it is worn the damper still looks intact from the outside while providing almost no resistance. The suspension springs hold the tub up, so nothing sags and nothing looks broken. The loss only shows up when there is enough weight and enough speed to need real damping, which is why owners see it first on heavy loads.

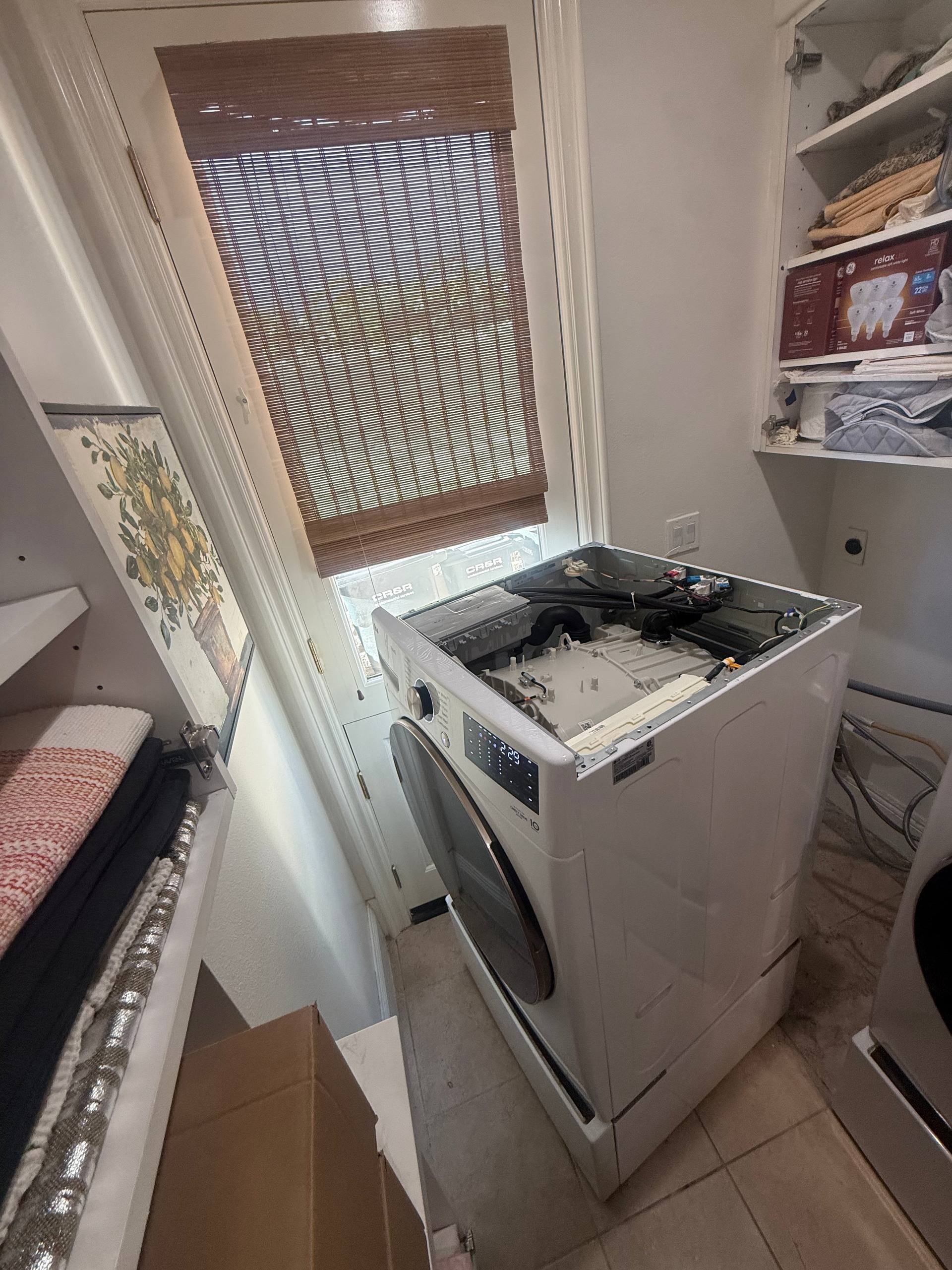

What fixed the LG washer not completing cycle on this WM4000HWA?

Replacing the dampers. Diagnosis pointed at worn suspension rather than an electrical or drain fault, and I installed the LG friction damper assembly, part number ACV72909503, on this WM4000HWA. With the new dampers in, the washer runs full loads through to the end of the cycle and spins normally.

These are replaced as a set. Mixing a fresh damper with three worn ones leaves the tub supported unevenly, and the machine will still fight to balance.

Is this worth repairing or is it time for a new washer?

On a machine where the only fault is suspension, repair is the straightforward call. The dampers are a wear part, the tub does not have to come out of the cabinet to reach them, and nothing else on this washer in Newport Beach needed attention.

FAQ

Can I keep using my LG washer if it won’t finish the spin cycle?

You can run it, but every heavy load will go through the same stalling and rebalancing routine, and the uncontrolled tub movement gets transferred into the cabinet and the parts bolted to it. If the only thing wrong is the dampers, running it this way adds wear to the suspension springs and the tub bearing area for no benefit. Most people end up splitting loads in half just to get laundry done, which is the real sign.

Why does my washer cycle take so much longer than it used to?

Extended cycle times are often the same problem showing up earlier than an outright stall. Before a washer gives up on a load, it repeatedly drops out of spin, tumbles to redistribute the clothes, and ramps back up. Each of those attempts adds minutes. A cycle that used to run an hour can stretch well past that while the machine keeps retrying, and the clothes come out wetter than normal because the final high speed spin never happened.

Do I need the exact LG damper part number for my model?

Yes. Damper length, mounting style, and friction rating vary between LG washer platforms, and a damper that bolts up physically can still be wrong for the tub weight of your machine. The assembly I used here, ACV72909503, is matched to the WM4000HWA. Find your model number on the sticker inside the door opening and order against that rather than against a photo of the part.
