Maytag Washer Banging During Spin: What It Was on an MVW7232HW0

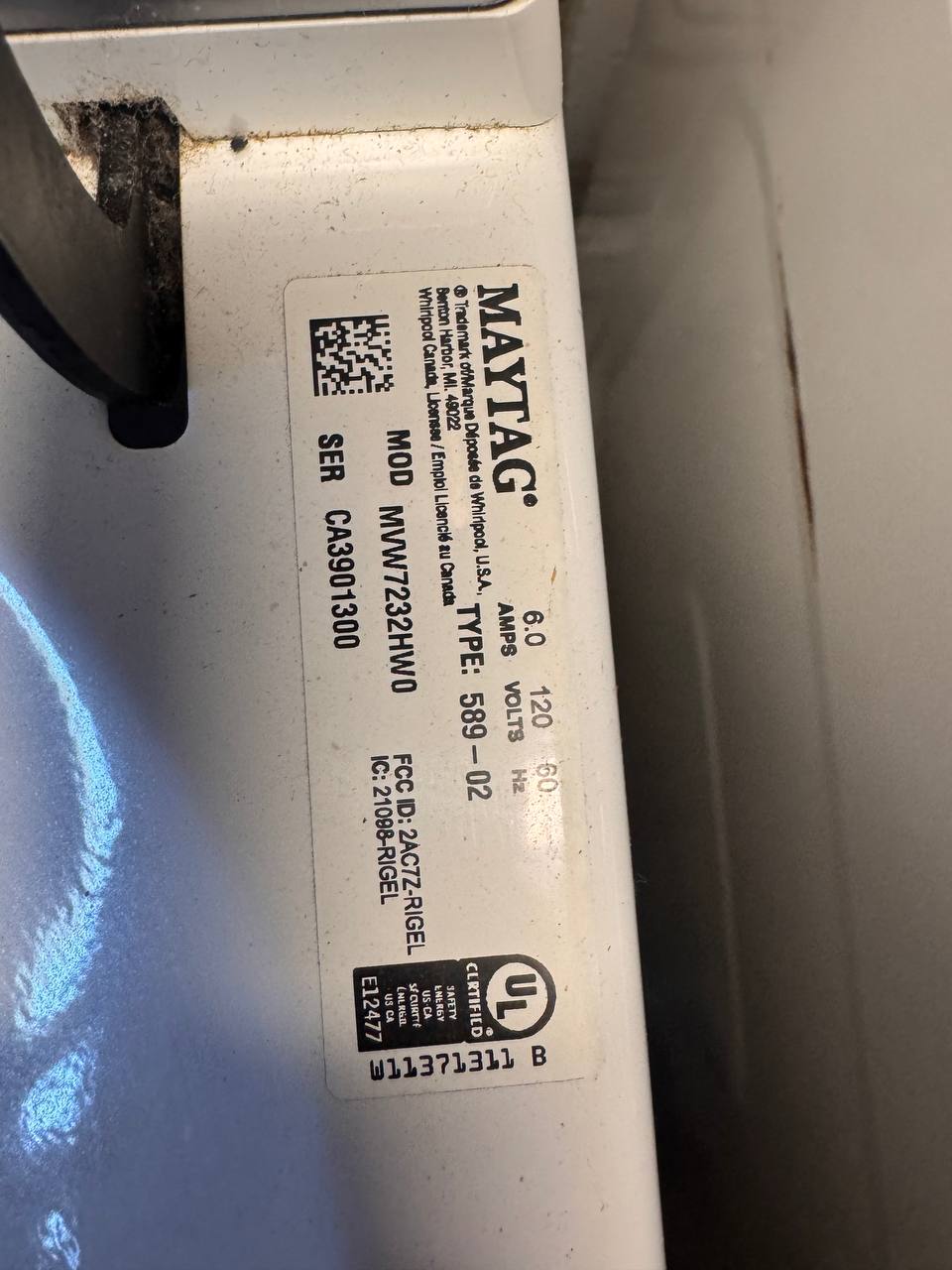

A Maytag washer banging during spin is usually the suspension system under the tub. On this MVW7232HW0 in Cypress, CA, the vertical suspension dampers were worn out, so the drum swung hard on every spin. Replacing them with part W11400156 brought the machine back to normal operation.

Why is my Maytag washer banging during spin?

The customer described it as knocking, and said the drum was throwing itself around hard on every spin cycle. That description narrows things down quickly, because a top-load washer only has a few things holding the tub steady when it accelerates.

Ranked by how often I find them on a machine that bangs and walks during spin:

1. Worn suspension rods or dampers. They hold the tub assembly and absorb the side-to-side motion as the basket comes up to speed. When the friction material inside wears down, the tub stops being damped and starts swinging freely until it hits the cabinet.
2. An unbalanced load. A single heavy item, a comforter, or a couple of towels bunched to one side will make almost any washer thump. This one shows up intermittently and goes away when the load is redistributed.
3. The machine not sitting level. If one foot is off the floor, the cabinet rocks, and the spin cycle makes that obvious.

The difference between the first cause and the other two is consistency. A load problem is occasional. Worn suspension is every spin, every time.

What it turned out to be here

Diagnosis on this unit pointed to the suspension. The tub had far more movement than it should, and the knocking matched the drum contacting its travel limits under spin speed rather than anything in the drive system.

I replaced the vertical suspension dampers, Maytag part number W11400156, as a pair. These are the shock-absorbing rods that suspend the tub inside the cabinet. Each one has a friction sleeve inside that resists movement, and once that sleeve wears, the rod extends and retracts with almost no resistance. The spring still holds the tub up, so the washer looks fine standing still, and then it slams around the moment the basket spins.

After the new dampers went in, the machine spun normally again with no knocking.

What can you check yourself?

Start with the load. Stop the cycle, open the lid, and spread the clothes evenly around the basket, then restart the spin. If the banging disappears, it was a balance issue.

Next, check whether the washer rocks. Push down on opposite corners of the cabinet with the machine empty. Any movement means the leveling feet need adjustment so all four sit firmly on the floor.

If the washer is level, the load is even, and it still bangs on every spin, the suspension is the next thing to look at. That part of the job means getting into the cabinet and supporting the tub assembly, which is work for a technician with the right service information.

FAQ

Can I keep using a washer that bangs during the spin cycle?

Running it that way lets the tub keep hitting the cabinet, and that contact can damage the outer tub, the basket, or the panels around it. The impacts also loosen hardware over time. If you need a load finished before the repair, use the lowest spin speed your machine offers and keep loads small and evenly spread, then get the suspension checked.

Do suspension rods have to be replaced in a full set?

Yes, replace them as a set. The rods wear at a similar rate because they carry the same tub and see the same number of cycles, so a new one next to three worn ones puts uneven resistance on the tub and the banging often comes back. On this Maytag I installed the dampers in pairs for that reason.

How long do washer suspension rods last?

There is no fixed interval. The wear depends on load size, spin speed, and how often the machine runs, so a washer doing several loads a day will go through them faster than one doing a few loads a week. Overloading is the biggest accelerator, since a heavy off-balance tub puts the most strain on the friction sleeves inside each rod.
